Aligning the Print Head

If printed ruled lines are misaligned or print results are otherwise unsatisfactory, adjust the print head position.

Note

  • If the remaining ink level is low, the print head alignment sheet will not be printed correctly.

    If the remaining ink level is low, refill ink tanks.

You need to prepare: a sheet of A4 or Letter-sized plain paper

  1. Check that printer is turned on.

  2. Load a sheet of A4 or Letter-sized plain paper on the rear tray.

  3. Press and hold the Stop button and release it when the Alarm lamp flashes 4 times.

  4. Press the Black button or the Color button.

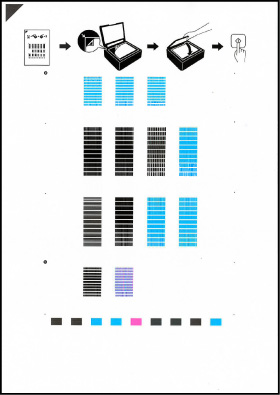

    The print head alignment sheet will be printed.

    Important

    • Do not touch any printed part on the print head alignment sheet. If the sheet is stained or wrinkled, it may not be scanned properly.

    • If the print head alignment sheet was not printed correctly, press the Stop button, and redo this procedure from the beginning.

  5. Place print head alignment sheet on platen.

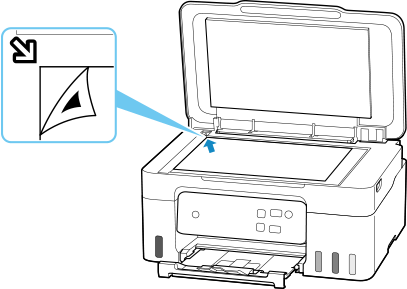

    Place the print head alignment sheet WITH THE PRINTED SIDE FACING DOWN and align the mark on the upper left corner of the sheet with the alignment mark .

  6. Close the document cover gently, then press the Black button or the Color button.

    The printer starts scanning the print head alignment sheet, and the print head position will be adjusted automatically.

    The print head position adjustment will be complete when the ON lamp lights after flashing.

    Remove the print head alignment sheet on the platen.

    Important

    • Do not open the document cover or move the print head alignment sheet on the platen until adjusting the print head position is complete.

    • If adjusting the print head position has failed, the Alarm lamp lights up. Press the OK button to release the error, then take appropriate action.

Note

  • For Windows, when the print results are still not satisfactory after adjusting the print head position as described above, adjust the print head position manually from the computer.

  • To print and check the current head position adjustment values, press and hold the Stop button and release it when the Alarm lamp flashes 6 times, then press the Black button or the Color button.
